How to Plan a Drip Irrigation System for Raised Garden Beds

A raised-bed drip irrigation system can look simple once everything is installed. The harder part happens before installation: deciding which plants should share a watering zone, how water will reach each root zone, and whether your outdoor faucet can support the planned drip lines.

The best approach is to plan the drip irrigation layout on paper first, lay out the tubing loosely, and test the system before cutting every line or covering it with mulch.

Quick Answer: To plan drip irrigation for raised beds, map your garden, group plants with similar watering needs, measure available water flow, choose the right drip-line style, test one zone, and only then secure the tubing and create a watering schedule.

This guide focuses on the design and planning principles for raised-bed drip irrigation rather than a brand-specific parts list. Tubing sizes, emitter spacing, pressure requirements, maximum line lengths, and installation order vary by system, so always follow the instructions for the components you choose.

The principles below align with drip-irrigation guidance from Utah State University Extension and Colorado State University Extension.

---

Raised-Bed Drip Irrigation Planning at a Glance

A successful system begins with the layout—not with cutting tubing.

---

Step 1: Draw Your Raised-Bed Irrigation Layout

Start with a simple overhead map of the garden.

It does not need to be architectural or perfectly scaled, but it should show enough detail to help you determine where water needs to travel.

Include:

• the outdoor faucet or other water source
• every raised garden bed
• container groups
• paths, gates, steps and mowing areas
• crops or planting patterns in each bed
• noticeable changes in elevation
• the planned route for the main supply line

Measure each raised bed and the approximate distance between the beds and the water source.

Keep Drip Tubing Accessible

Route the main supply tubing where it can be inspected without creating a trip hazard or putting it at risk of damage from garden tools.

Colorado State University Extension notes that exposed tubing should be secured. If tubing is covered by mulch, make sure you can still locate fittings, emitters and service points later.

Keep your garden map after installation.

It can become useful when crop rows change, beds are replanted, or you need to locate a connection next season.

---

Step 2: Group Plants Into Compatible Watering Zones

One of the most important decisions in a drip irrigation layout is deciding which plants belong on the same watering zone.

A good irrigation zone contains plants and watering devices that can operate effectively on a similar schedule.

A dense bed of salad greens, young tomato plants and a mature shrub may all need water—but not necessarily at the same frequency, duration or delivery rate.

On your garden map, group plants according to:

• planting density
• root-zone size
• sun exposure
• wind exposure
• soil or potting mix
• crop type
• seasonal water demand

Keep Lawn and Raised-Bed Irrigation Separate

Avoid placing lawn sprinklers and raised-bed drip irrigation on the same watering zone.

Vegetable gardens and lawns generally have different watering requirements.

Colorado State University Extension recommends separating vegetable-garden irrigation from lawn irrigation and also advises against mixing higher-flow microsprays with drip emitters on the same zone.

If one valve would force very different plants or irrigation devices to operate together, consider dividing the layout into additional zones.

Several well-designed watering zones are usually easier to adjust and troubleshoot than one oversized irrigation network.

---

Step 3: Check Water Flow and Pressure Before Designing the Drip Lines

Before counting emitters or deciding how many lines should run through each raised bed, determine what your water source can actually provide.

Checking only static water pressure is not enough. You also need to understand available water flow while the faucet is running.

How to Measure Outdoor Faucet Flow

A simple bucket test can provide a useful starting point.

1. Choose a container with a known volume.
2. Open the outdoor faucet to the setting you expect to use.
3. Measure how many seconds it takes to fill the container.
4. Calculate the approximate flow rate.

Use:

Gallons per minute (GPM) = Container volume in gallons ÷ Fill time in seconds × 60

For example, if a 5-gallon bucket fills in 50 seconds:

5 ÷ 50 × 60 = 6 GPM

Consider repeating the test around the time of day you normally expect to irrigate because household and neighborhood water demand can affect available flow and pressure.

---

What Does a Drip Irrigation Head Assembly Need?

A typical faucet-connected drip irrigation system may include:

Water source → backflow protection → filter → pressure regulator → timer/control valve → main tubing

However, the correct components and their order depend on the specific equipment, water source, manufacturer instructions and local requirements.

Important components may include:

Backflow Protection

Backflow prevention helps protect the potable water supply.

Requirements vary by location, so check local plumbing requirements or contact your water provider when necessary.

Filter

Small drip emitters can become clogged by sediment and debris.

A properly selected filter helps reduce clogging and should remain accessible for inspection and cleaning.

Pressure Regulator

Drip irrigation components are designed to operate within specific pressure ranges.

Do not select a pressure regulator based on guesswork.

Match the regulator to the specifications of the tubing, fittings and emitters in your system.

---

Step 4: Choose the Right Drip-Line Style for Your Raised Beds

For gardeners building a complete setup, a drip irrigation system for raised beds can provide the tubing, emitters, and connectors needed to create a customized layout.

There is no single drip-line pattern that works for every garden.

Two common approaches work particularly well for small raised-bed gardens.

Option 1: Inline Drip Tubing for Dense Planting

Inline drip tubing has emitters manufactured at regular intervals along the line.

It can work well for:

• leafy greens
• onions
• herbs
• closely planted vegetables
• densely planted annual beds

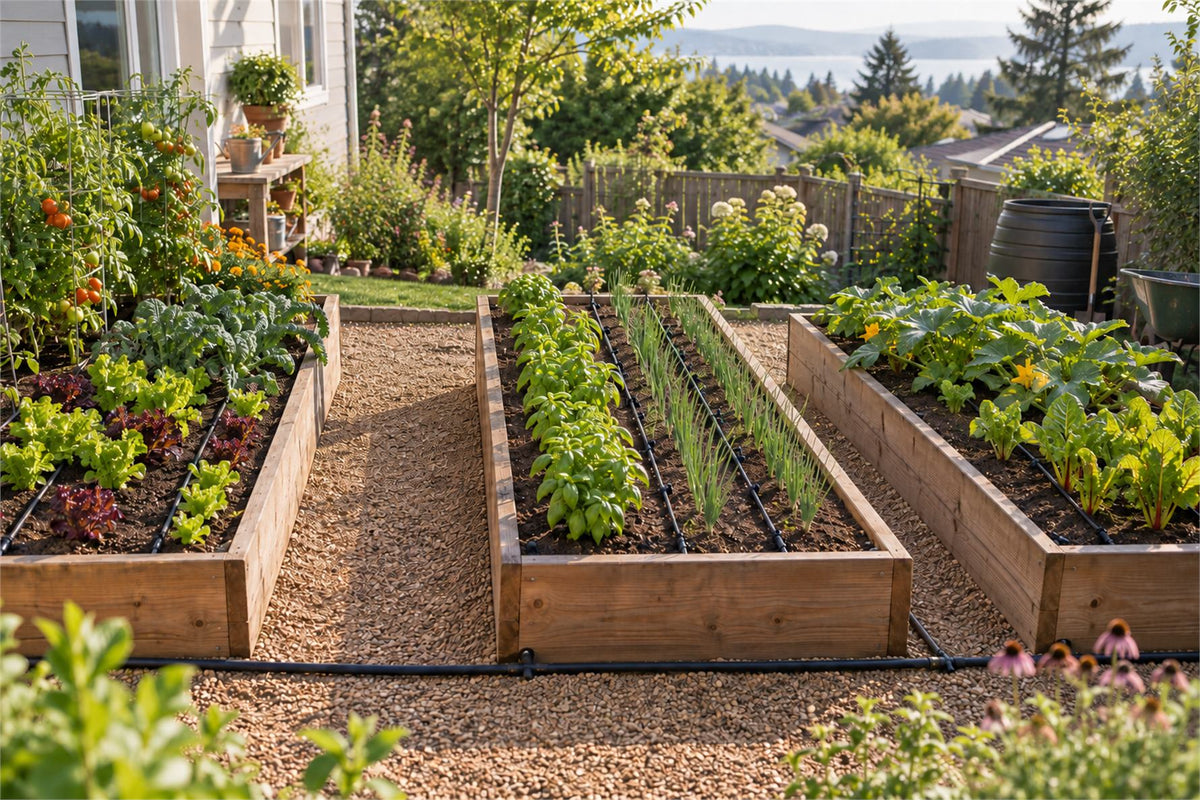

Parallel drip lines can be arranged across a raised bed so their wetting patterns provide appropriate coverage around the active root zones.

Emitter Spacing Is Not the Same as Line Spacing

Do not assume that a 12-inch emitter spacing automatically means drip lines should also be 12 inches apart.

Water moves differently through different soils.

In general:

• sandy soils tend to allow faster downward movement
• finer-textured soils often allow more lateral spreading

Actual performance depends on soil structure, compaction, emitter flow and irrigation duration.

Use the component manufacturer's recommendations as a starting point, then test the wetting pattern in your own raised bed.

---

Option 2: Point-Source Emitters for Individual Plants

Point-source drip emitters deliver water at selected locations instead of fixed intervals.

They can be useful for:

• tomatoes
• peppers
• widely spaced vegetables
• container plants
• shrubs
• mixed ornamental beds

Position water where the active root system can use it rather than concentrating water directly against a mature plant stem.

As perennial plants, shrubs or trees grow, emitter number and placement may need to change as the root zone expands.

Utah State University Extension describes both point-source layouts for individual plants and grid-style inline layouts for densely planted areas.

Which Is Better for Raised Beds?

The goal is not to choose the most sophisticated emitter. It is to choose the delivery method that matches the planting pattern.

---

Plan Flush Points and Maintenance Access

Every drip-irrigation layout should also consider maintenance.

Include a line end or service point that can be opened for flushing.

When laying tubing:

• avoid sharp bends and kinks
• leave reasonable slack for adjustments
• keep fittings accessible
• keep lines away from walking paths
• use stakes after the layout has been tested

Do not permanently secure everything yet.

Testing comes first.

---

Step 5: Test the Drip Irrigation Layout Before Mulching

Before staking every line or covering tubing with mulch, build and test one watering zone.

Turn the water on gradually and inspect:

• every fitting for leaks
• each emitter for water flow
• the first and last emitters for obvious differences
• wetting patterns around plants
• dry gaps between root zones
• puddling or runoff
• unusual spraying or pressure problems

Do not judge drip irrigation only by what the soil surface looks like. Water needs to reach the active root zone below the surface.

After running the system for a measured amount of time, dig a small inspection hole away from plant roots.

Look at how far the water has moved:

downward and sideways.

If you find dry areas, excessive pooling or uneven coverage, adjust:

• emitter location
• drip-line spacing
• pressure
• irrigation duration
• zone size

Then test again.

Only after the wetting pattern looks appropriate should you stake the tubing and apply mulch.

---

How Long Should You Run Drip Irrigation for Raised Beds?

There is no universal number of minutes that works for every raised-bed garden.

Runtime depends on:

• emitter flow rate
• number of emitters
• soil type
• raised-bed depth
• crop type
• plant maturity
• weather
• season
• desired watering depth

Instead of copying a fixed watering time, start with a measured test.

Simple Scheduling Method

1. Run the irrigation system for a recorded amount of time.
2. Allow water time to move through the soil.
3. Check how deeply and widely the root zone was wetted.
4. Adjust runtime or watering frequency.
5. Repeat the test as plants and weather conditions change.

This produces a schedule based on your actual garden, rather than an arbitrary number of minutes.

---

Adjust Raised-Bed Watering as the Seasons Change

A watering schedule that works during spring may not be appropriate during peak summer heat.

Consider:

• temperature
• rainfall
• plant growth
• crop stage
• soil moisture
• evaporation

Raised beds can also behave differently from surrounding in-ground soil, so continue checking moisture in the active root zone.

If you use an automatic garden water timer, seasonal adjustments can make it easier to change watering frequency and duration without rebuilding the drip system.

Automation can control when watering happens, but observations in the garden should still determine whether the schedule is appropriate.

---

Drip Irrigation Maintenance Starts With Good Design

A drip system is not finished if the filter cannot be reached or the lines cannot be flushed.

Build maintenance into the original layout.

Regularly:

• inspect and clean the filter
• flush line ends
• check for clogged emitters
• replace damaged tubing
• inspect fittings for leaks
• reposition emitters as plants grow
• check stakes and exposed tubing
• update your irrigation map after major changes

Utah State University Extension recommends regular filter inspection during the growing season, with more frequent attention when the water source contains more sediment.

Always follow the maintenance recommendations for your actual drip-irrigation components.

---

Raised-Bed Drip Irrigation Planning Checklist

Before buying or permanently installing the system, confirm:

☐ Raised beds have been measured
☐ Water-source location is marked
☐ Main tubing route is planned
☐ Plants are grouped by similar watering needs
☐ Faucet flow has been measured
☐ Pressure requirements have been checked
☐ Local backflow requirements are understood
☐ Filter and pressure regulator match the system
☐ Drip-line style matches the planting pattern
☐ Unlike watering devices use separate zones
☐ Flush points remain accessible
☐ One zone will be tested before final installation
☐ The design allows for future crop changes
